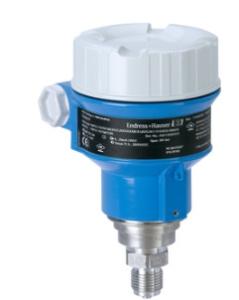

PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51

Name: PMP516355139 Absolute And Gauge Pressure Cerabar PMP51
Brand: Endress Hauser
Price: 1 USD

Wholesale PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51 from china suppliers

Brand Name : Endress Hauser

Model Number : PMP51-6355/139

Certification : Rohs

Place of Origin : DE

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500pcs/month

Delivery Time : On request

Packaging Details : Original packing

Accuracy : Standard 0.1% Platinum 0.075%

Process temperature : -40°C...130°C (-40°F...266°F)

Pressure measuring range : 1 bar...400 bar (15 psi...6000 psi)

Process pressure / max. overpressure limit : 600 bar (9000 psi)

Main wetted parts : 316L

Max. measurement distance : 4000 m (13.123 ft) H2O

Contact Now

PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51

PMP51-6355/139 Absolute And Gauge Pressure Cerabar PMP51

Material process membrane	316L, AlloyC, Rhodium>Gold
Measuring cell	400mbar...400bar
Safety approvals	SIL

Field of application

The Cerabar PMP51 digital pressure transmitter with metal membrane is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. PMP51 is designed for high pressure applications up to 400bar. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Single chamber aluminum or stainless steel (316L) housing.

Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +130°C (-40 to +266°F), 150°C (302°F) for 1h
Measuring range: -1/0 up to +400bar (-15/0 up to +6,000psi)
Accuracy: ±0.1%, "Platinum" ±0.075%
International explosion protection certificates, SIL, hygienic approvals, marine approvals

Benefits

Accurate measurement of the process value even in the case of changing process temperature
Process safety assured with small flush mounted process connections in hygienic applications
For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
Modular concept for easy replacement of display or electronics
Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Seamless and independent system integration (HART/PA/FF)
Available with mounted manifolds: always fit, always tested for leaks
